120 Gallon Saltwater Aquarium

Equipment Main Tank:

• 120 Gallon AGA Reef Ready Corner Flow – 48″ x 24″ x 24″
• 2 x 250 Watt Metal Halides – 14k Hamiltons
• 2 x Seio 820 Powerhead – 820gph held with SureGrip Magnets
• 1 x Hydor Koralia 1260gph
• 40L Sump – 48″ x 13″ 16″
• Mag 7 Return Pump – 700gph
• 3/4″ Perimeter Manifold – 14 1/2″ Outlets – Work in progress
• 80 Pounds Sand
• 300 Watt Finnex Heater
• Vertex IN-180 Skimmer
• Two Little Fishes 150 Reactor – Carbon
• Two Little Fishes 150 Reactor – Phosban
• Neptune Systems – Aqua Controller Jr. Programmable Controller
• Water General 6 Stage Reverse Osmosis Machine with TDS Meter
• APC Back UPS Pro – 1100VA / 670W Battery Backup
• Custom Stand and Canopy
• Auto Top Off System

Design, Planning & Setup:

We choose a 120 gallon tank because we liked the length and were combining three saltwater tanks into this single tank and need something with some room to grow.

The stand was designed to accommodate up to a 55 gallon sump as well as side doors and an extra wide front door for easy access. Since my dad was building all of the stand, canopy and tower for me, I had to design some drawings for him to go off of.

Note – Top Center Brace Not Shown

Note – Original design was a 55g. Later switched to a 40 Long for height reasons.

Note – Tower slightly too tall and will be flush.

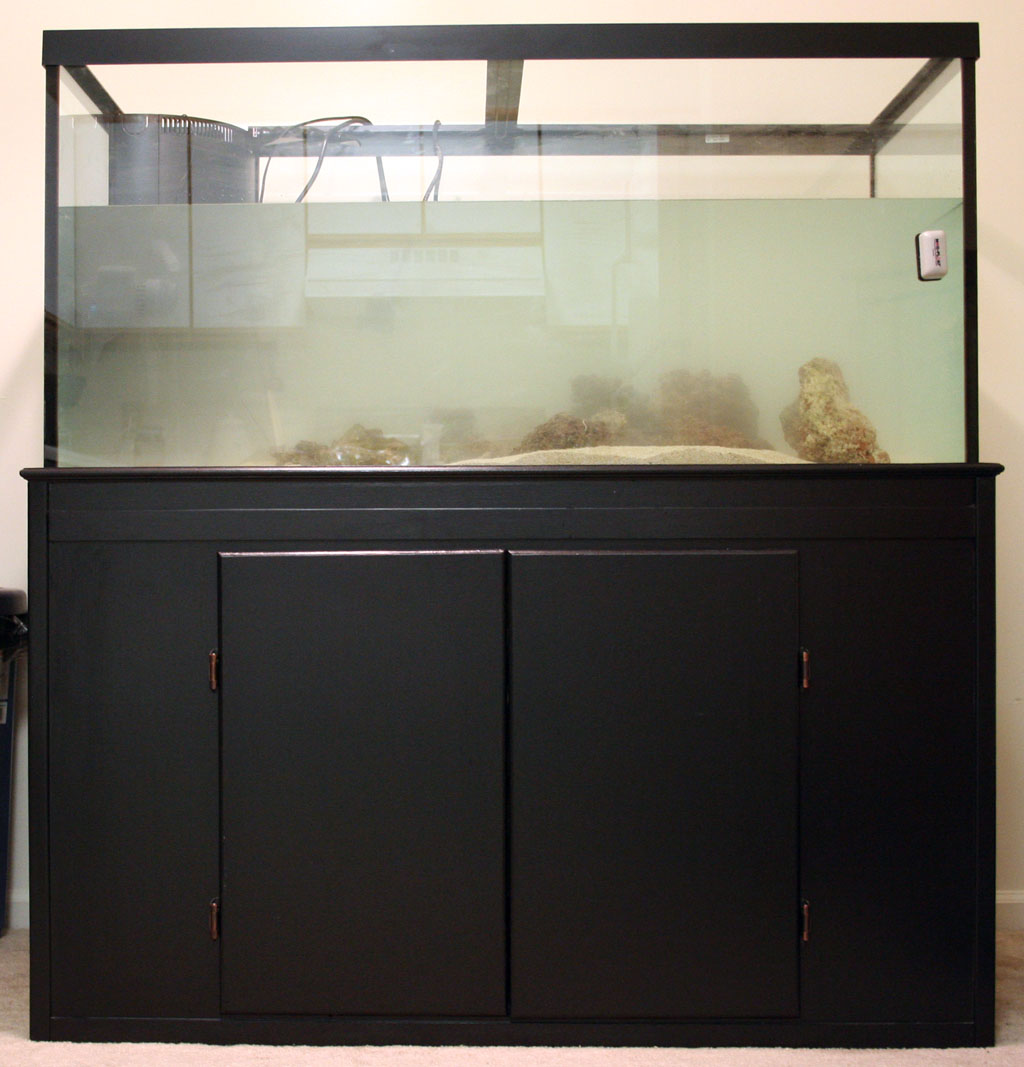

Note – Two days later the tank has cleared up.

Note – Two days later the tank has cleared up.

Fish:

1 x Black Clownfish False Perc
1 x Orange Shoulder Tang
1 x Yellow Tail Damselfish
1 x Yellow Tang
1 x Purple Pseudochromis
1 x Yellow Watchman Goby

Pictures:

January 14, 2007

January 20, 2007

January 31, 2007 – Front

January 31, 2007 – Front High

January 31, 2007 – Right Front Angle

January 31, 2007 – Left Front Angle

January 31, 2007 – Left Side
