Nissan 240SX Information - Lighting Modifications and Setup

Lighting Modifications:

When I had The Stock Pop-up Lights, Click Here For The S13 Silvia 2 Projector Lights

Hella H4 Headlight Conversion Kit
Eurolite Xenon H4 Headlights
Eurolite Xenon Fog Lights

I made my own clear turn signals out of Plexiglas. I removed the amber front that the stock ones had. I then cut a piece of Plexiglas out to fit tightly over where the stock amber one was. Next we sanded edges and drilled the holes so I could use the stock mounts. To get the Plexiglas to bend I slightly heated it up and bent it to fit how I wanted it. Finally I used clear Liquid Nails glue to make it water tight and bought xenon bulbs for it.

Aligning Headlights

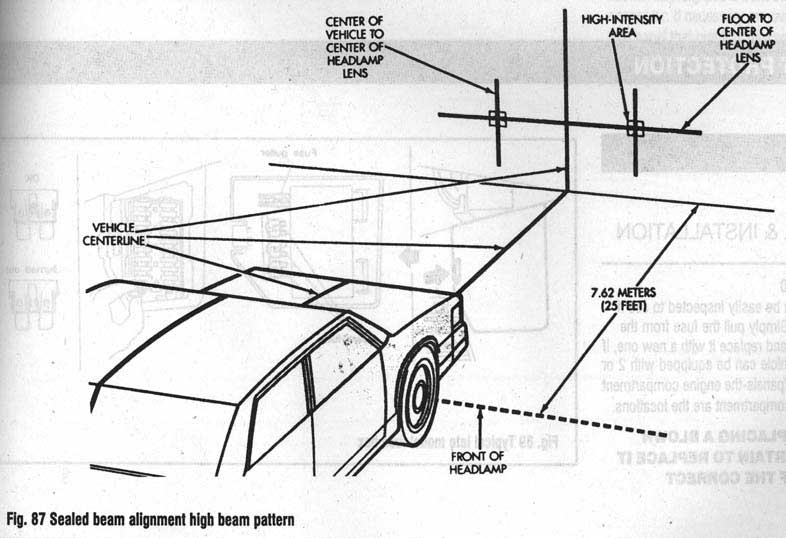

High Beams:

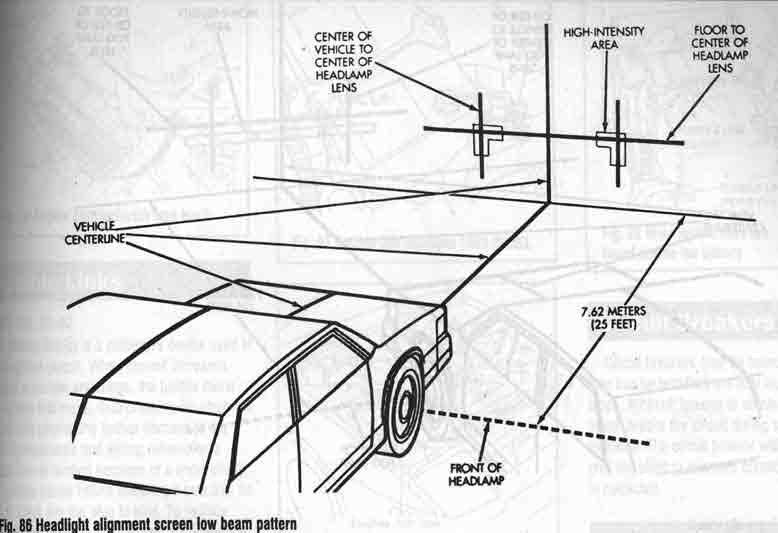

Low Beams:

S13 Silvia Front End Conversion:
Here Is A List Of Parts Needed To Do The S13 Silvia Front End Conversion

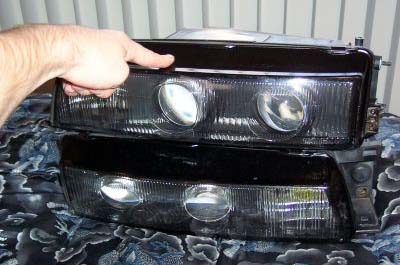

Silvia Headlight Housing - 3 Projector, 2 Projector (Shown Below), or Non Projector



Silvia Center Peice That Says "Silvia" - Optional You Can Get A Aftermarket Grille too


Silvia Corner Turn Signal Lights



Silvia Fenders

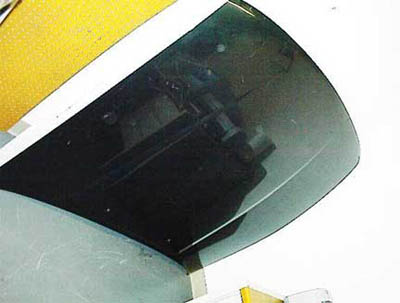

Silvia Hood - Stock or Aftermarket


Silvia Headlight Core Supports


Silvia Front Bumper - Stock of Aftermarket


Silvia Front Turn Signals - Only If You Use Stock Front Bumper See Above
