Nissan 240SX Information - Wheels, Tires and Brake Information

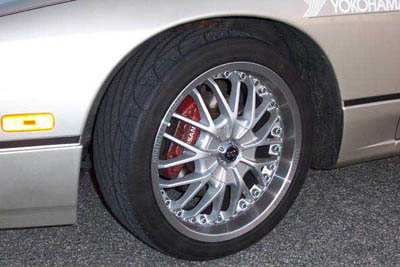

Wheels:

17" x 7" Enkei RPOM

Tires:

215/40/ZR17 Yokohama Parada

Brakes:

The 300zx calipers bolt up to the stock mounts and it is a pretty simple straight foward install. You will need:

Z32 300ZX Calipers
Z32 300ZX Rotors
Pads if necessary
Brake Lines

You will need new brake lines, which I got from PDM Racing, because of some fittings dont match up with the stock ones. I also bought a caliper rebuild kit from Courtesy Nissan Parts which included all new hardware for the caliper(shims, pins, gaskets...). I got my calipers and rotors used from a few different people but, you can buy a 300zx brake upgrade kit for our car at PDM Racing or Sr Swap otherwise you will need to browse classifieds to find each part individually. Since the brakes are so large you might need to get wheel spacers since with some aftermarket wheels they wont mount because of the offset. I had to get a wheel spacer and also longer wheel studs.

Nissan 300ZX Twin Turbo 4 Piston Aluminum Calipers
11" 300ZX Twin Turbo Rotors
Stainless Steel Braided Brake Lines
APR Wheel Studs

For more information check out Asad's Site

Courtesy Nissan Part #:	Description:
41120-30P25	Seal Kit (to do both front calipers)
41080-40P27	Shim Kit (4 full and 4 angled shims + anti-squeal compound)
41217-30P00	Brake Pad Pins ( 2 per caliper, 4 total)
41090-40P02	Caliper spring (1 per caliper)
41218-37P00	Clip (brake pad pin retaining clip)
