Nissan 350Z Information - Turn Signal Modifications

Installation Details Provided By: SKiDaZZLe from my350z.com Forum

Tools:

Installation Instructions:

Loosen wheel lugs on front tires with 21mm socket
Jack up each side of the car and place on jackstands, so the front wheels are off the ground
Remove the wheel lugs from the front wheels, and remove wheels

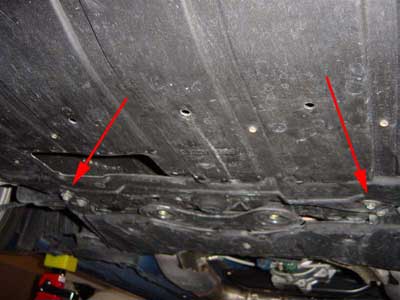

Remove the 2 rear bolts from the under-engine cover with 10mm socket

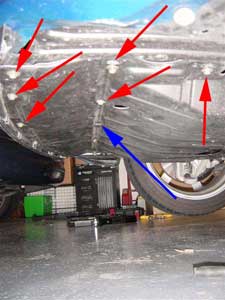

Remove the 12 bolts with the 10mm socket (6 in red, same on other side) and use the flat head screwdriver to pry off pop rivet (blue arrow) this will let the cover fall. Remove it and place it away. These next steps need to be done on each side

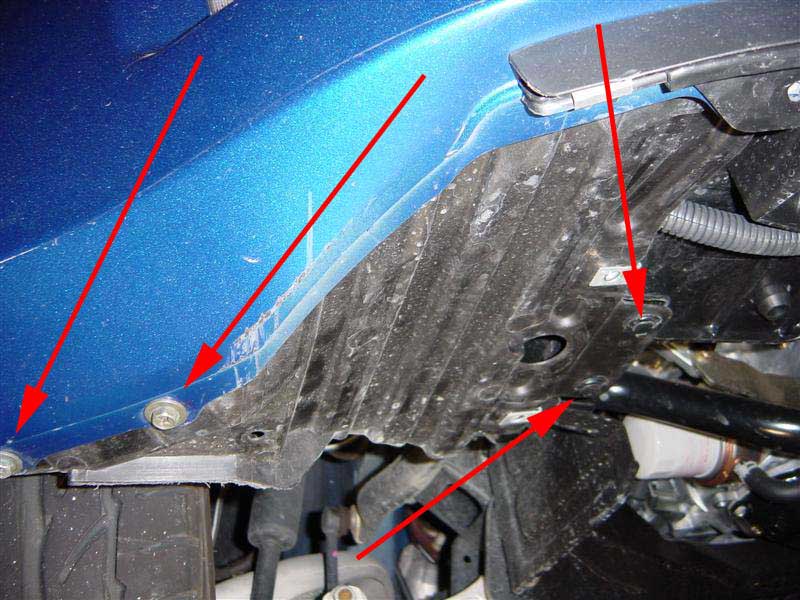

Remove the 2 bolts with the 10mm socket and the 2 pop rivets with the flathead from the bottom of the wheel well spalsh guard

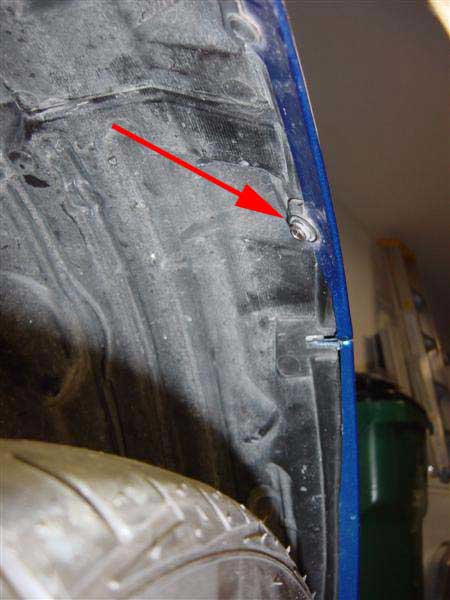

Remove screw from the wheelwell spash guard (I think it may be a bolt stock, but its a screw since i had the front bra added)

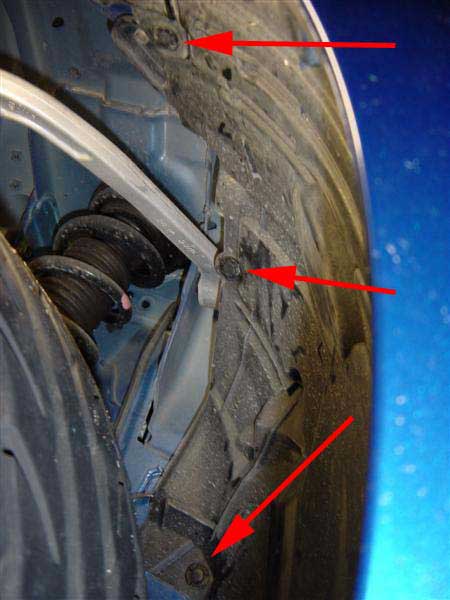

Remove the 3 pop rivets holding the splash guard in place. it should be able to be removed now

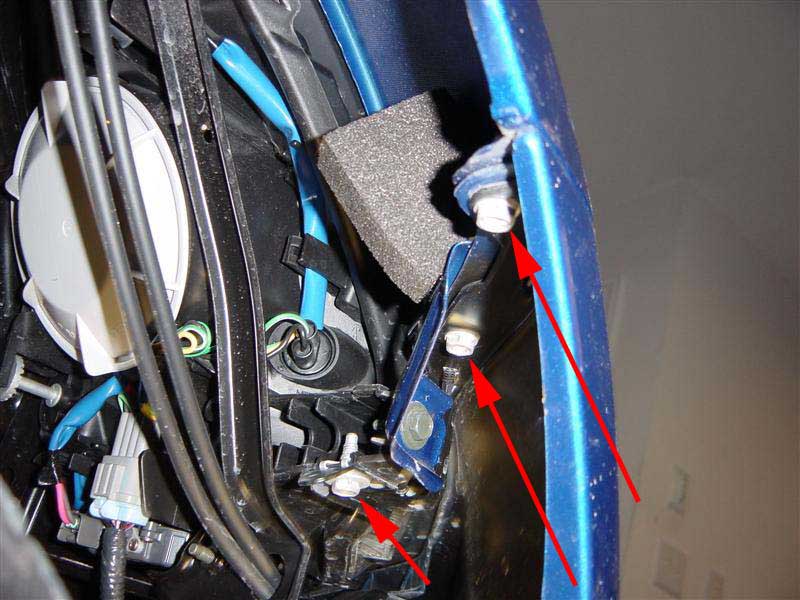

Remove the 3 bolts with the 10mm socket. (so you dont forget: the 2 closer ones are sharp on the end, and the one away is flat and has a washer).
That is it for each side, the next step is the final step to take bumper cover off.

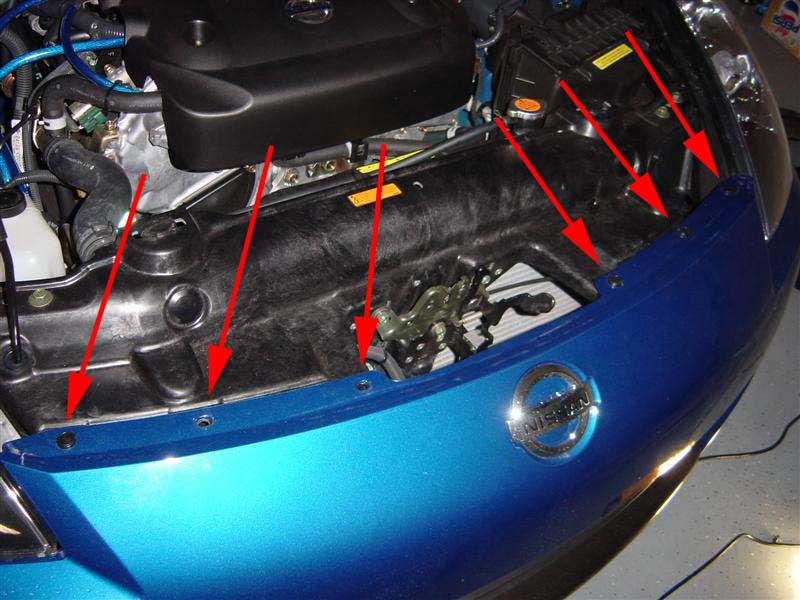

Remove the 6 pop rivets from the top of the bumper cover with the flathead screwdriver. be careful not to break them.

The bumper should now silde off forward.
IF you are replacing markers, here is the additional step:

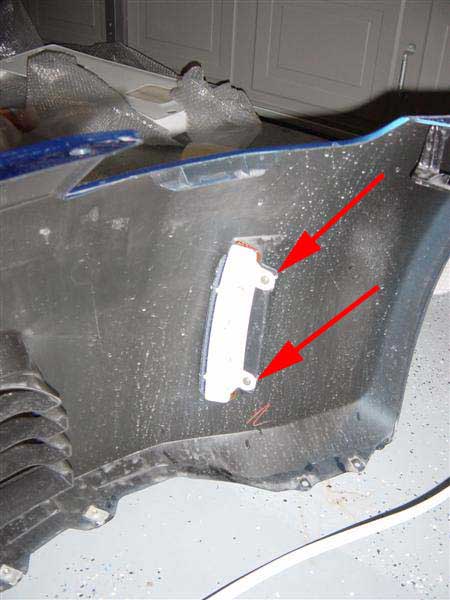

Remove the 2 screws from each marker with the philips screwdriver.

Replace stock marker with LED marker or clear marker
Installation is in reverse. Please make sure the splash guards are correctly overlapping. Use pics to determine this.
